Mobile Aluminium Scaffold Tower Systems EN 1004-1 5 Dimensional Variants

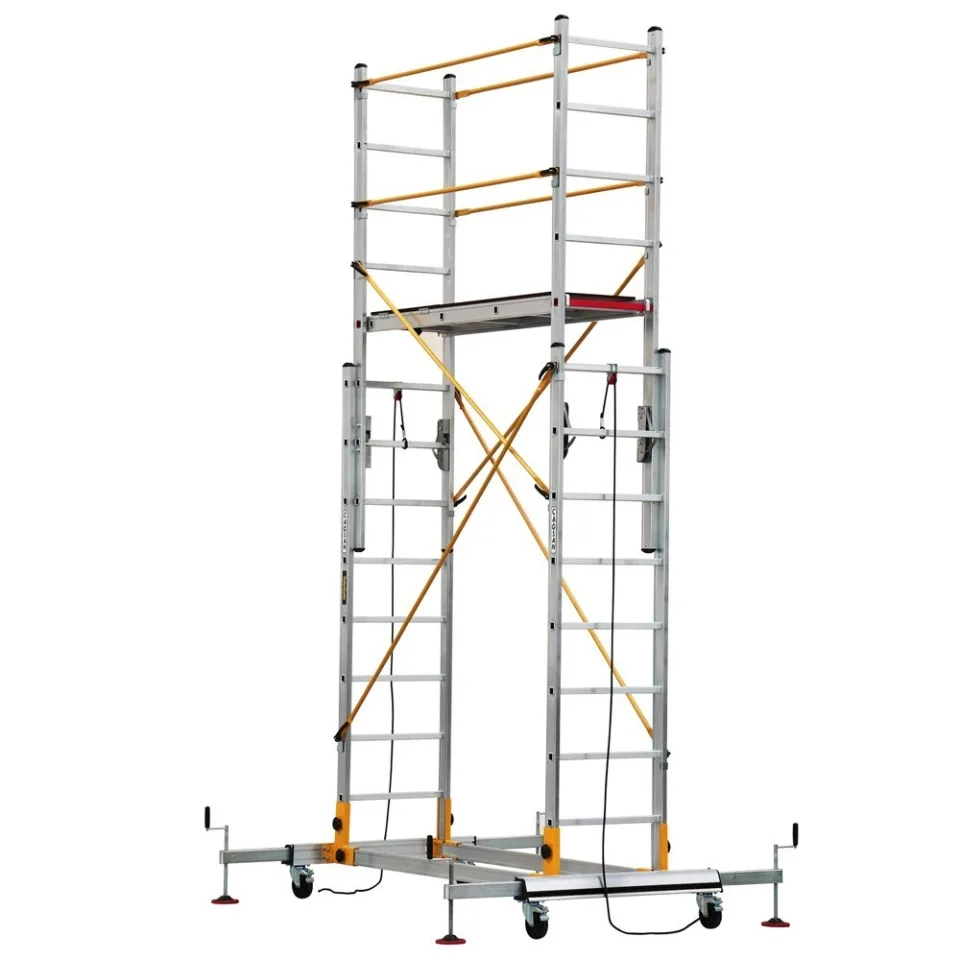

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold

Height Selector
Working Height Range
between 4.55 m and 7.85 m
Rated Load Capacity
200 kg/m² (Class 3 Platform Load)
Structural Material
High-Tensile Aluminium Alloy
B2B Supply Mode
B2B Export Quote
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - SPS-004 (8 rungs)
SELECTED VARIANT SKU: SPS-004
8 rungs
Select Rung / Module Variant (5 Options):
Request Quote
Custom Export Crating & Freight • Ex-Stock / Scheduled Export Loading
Request B2B Quote (WhatsApp)
Selected Variant Technical Parameters:
Number of Rungs / Steps
2x8
Min. Tower Height (m)
2,50
Max. Tower Height (m)
3,90
Max. Platform Height (m)
2,75
Max. Working Height (m)*
4,55
Net Weight (kg)
81,4
Base Footprint (cm)
125-215x210
Folded / Packing Size (WxLxH cm)
39x122x46

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Dimensional Variant & RFQ Matrix

Click any row below to preview its exact parameters and BOM breakdown above, or add directly to your B2B RFQ Basket.

Model / SKU Rungs / Module Max Working Height Platform Height Net Weight Export Packing / Dispatch B2B Quotation Action
SPS-004 8 rungs 4.55 m 2.75 m 81.4 kg Custom Export Crating & Freight Request Quote
SPS-005 10 rungs 5.63 m 3.83 m 91 kg Custom Export Crating & Freight Request Quote
SPS-006 11 rungs 6.22 m 4.42 m 94.2 kg Custom Export Crating & Freight Request Quote
SPS-007 13 rungs 7.03 m 5.23 m 100.6 kg Custom Export Crating & Freight Request Quote
SPS-008 15 rungs 7.85 m 6.05 m 140 kg Custom Export Crating & Freight Request Quote

Technical Specification Schedule

* Maximum Working Height values are calculated per EN norms by adding ~2.0 m ergonomic reach above standing elevation.

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Product SKU dimensional diagram Product SKU
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Number of Rungs / Steps dimensional diagram Number of Rungs / Steps
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Min. Tower Height (m) dimensional diagram Min. Tower Height (m)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Tower Height (m) dimensional diagram Max. Tower Height (m)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Platform Height (m) dimensional diagram Max. Platform Height (m)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Working Height (m)* dimensional diagram Max. Working Height (m)*
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Base Footprint (cm) dimensional diagram Base Footprint (cm)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Folded / Packing Size (WxLxH cm) dimensional diagram Folded / Packing Size (WxLxH cm)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Folded / Packing Size (WxLxH cm) dimensional diagram Folded / Packing Size (WxLxH cm)
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Product SKU dimensional diagram
Product SKU
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Number of Rungs / Steps dimensional diagram
Number of Rungs / Steps
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Min. Tower Height (m) dimensional diagram
Min. Tower Height (m)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Tower Height (m) dimensional diagram
Max. Tower Height (m)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Platform Height (m) dimensional diagram
Max. Platform Height (m)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Max. Working Height (m)* dimensional diagram
Max. Working Height (m)*
Net Weight (kg)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Base Footprint (cm) dimensional diagram
Base Footprint (cm)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Folded / Packing Size (WxLxH cm) dimensional diagram
Folded / Packing Size (WxLxH cm)
 SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Folded / Packing Size (WxLxH cm) dimensional diagram
Folded / Packing Size (WxLxH cm)
SPS-004 2x8 2,50 3,90 2,75 4,55 81,4 125-215x210 60x225x38 39x122x46
SPS-005 2x10 3,05 4,95 3,83 5,63 91,0 125-215x210 60x280x38 39x122x46
SPS-006 2x11 3,34 5,54 4,42 6,22 94,2 125-215x210 60x310x38 39x122x46
SPS-007 2x13 3,87 6,35 5,23 7,03 100,6 145-235x210 60x360x38 39x148x46
SPS-008 2x15 4,41 7,17 6,05 7,85 140,0 145-235x215 60x415x45 39x154x46

Structural Design & Material Engineering

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold (SPS-004): Modular mobile aluminium scaffold tower system certified to EN 1004-1 across 5 tower elevations, rated for 200 kg/m² (Class 3 Platform Load) up to 7.85 m working height.

The SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold modular mobile tower scaffold is fabricated from high-yield primary aluminium alloy tube profiles and precision positive-locking joints. Certified to EN 1004-1, it supports 200 kg/m² distributed platform load without lateral torsional buckling.

Key Manufacturing & Export Specifications

  • Compliance Standard: EN 1004-1
  • Rated Mechanical Capacity: 200 kg/m² (Class 3 Platform Load)
  • Surface Finish: Natural anodised / mill-finish corrosion-free industrial alloy

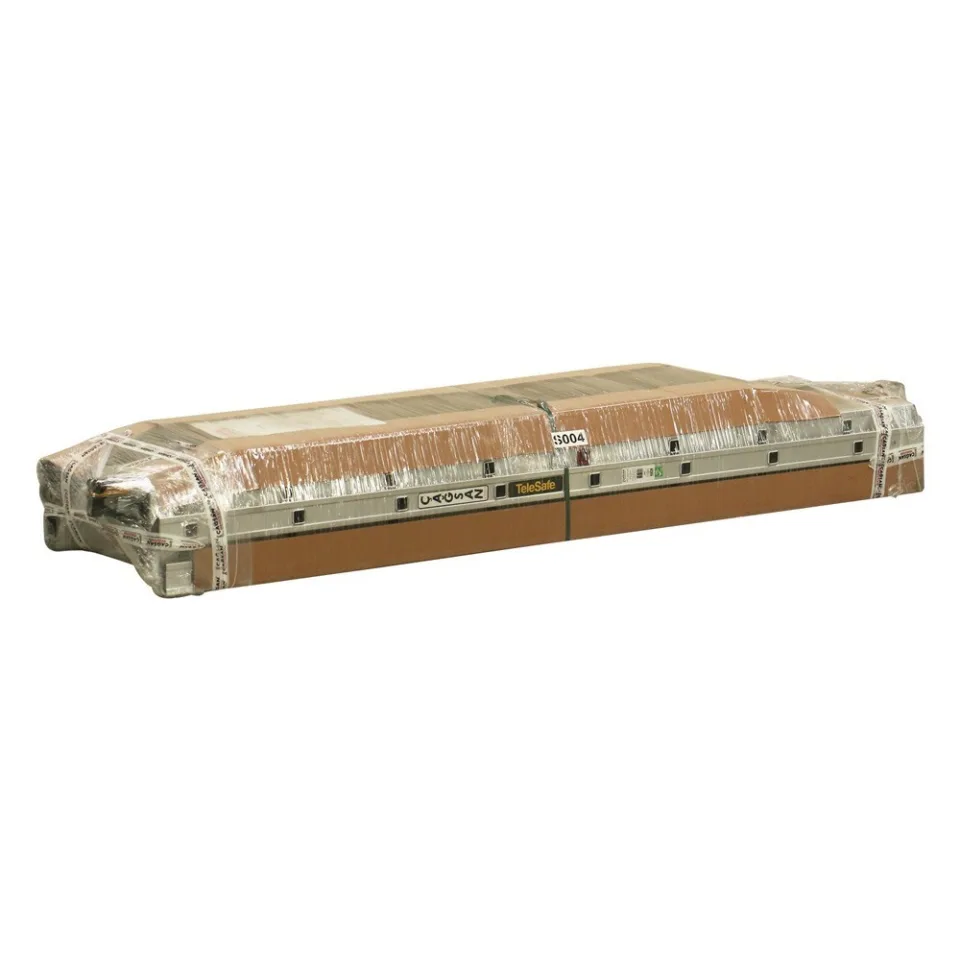

  • Export Packaging: Shrink-wrapped / flat-pack palletised with ISPM-15 export compliance

Core Safety & Ergonomic Advantages

Structural Detail #1 Precision-welded primary aluminium alloy tube frames offering superior rigidity-to-weight ratio for rapid tool-free tower assembly.
Structural Detail #2 Full 360° perimeter guardrail geometry with 15 cm aluminium toe-boards and anti-slip trapdoor decks compliant with EN 1004-1.

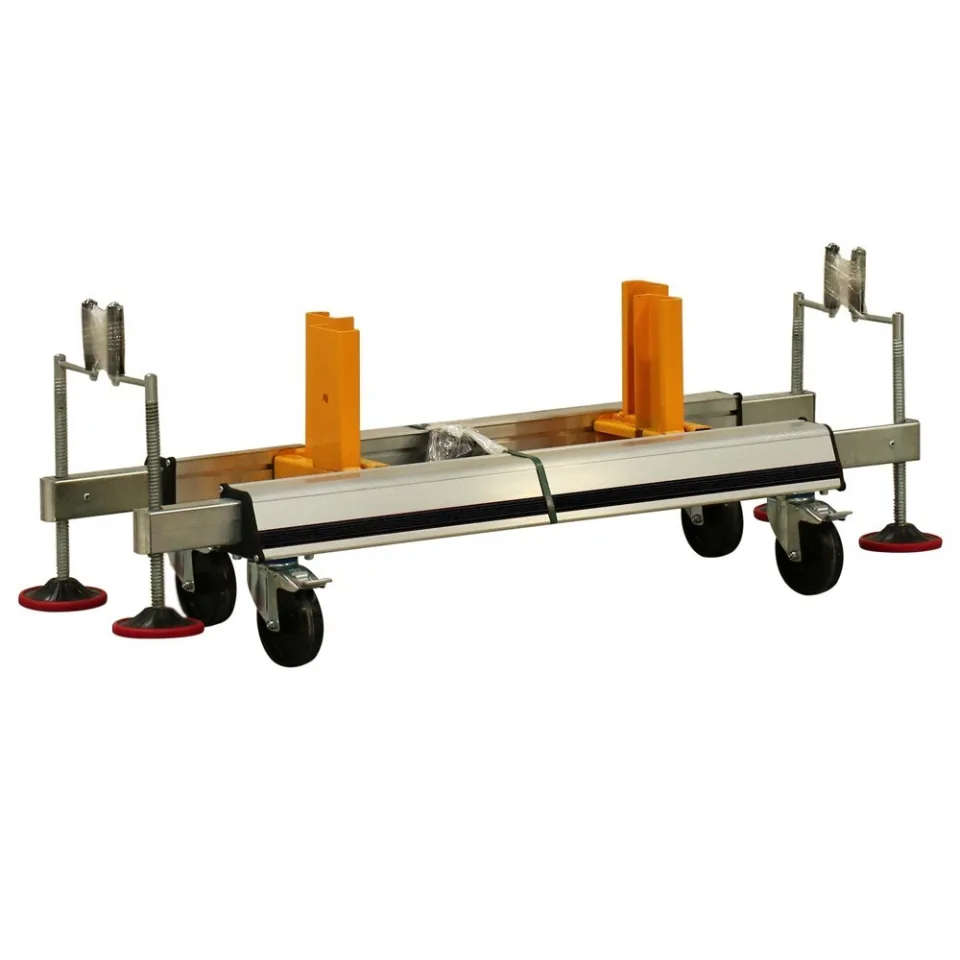

Structural Detail #3 Heavy-duty height-adjustable swivel castors with foot-actuated locking brakes and telescopic lateral outriggers for uneven site floors.
Structural Detail #4 Optimised flat-pack export bundling for high-density 20ft DC, 40ft HC container, and European mega-truck transport.

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold Joint, Rung & Locking Engineering

Close-up structural details of swaged profile joints, anti-slip feet, and positive-locking safety mechanisms.

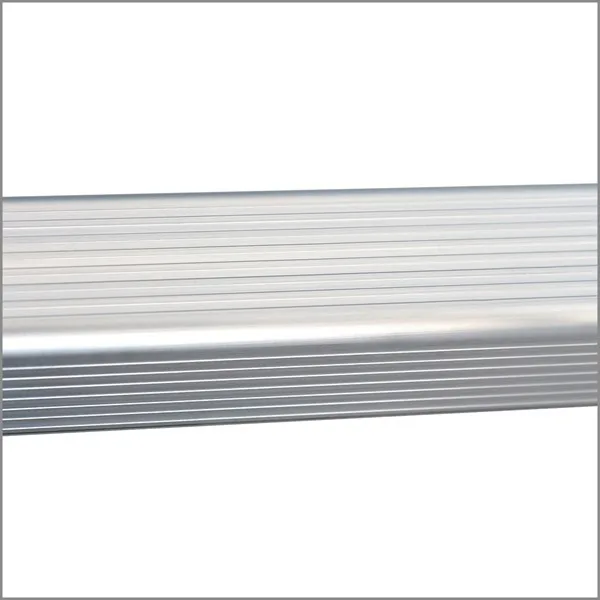

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - Serrated Anti-Slip Square Rung Profile
Serrated Anti-Slip Square Rung Profile

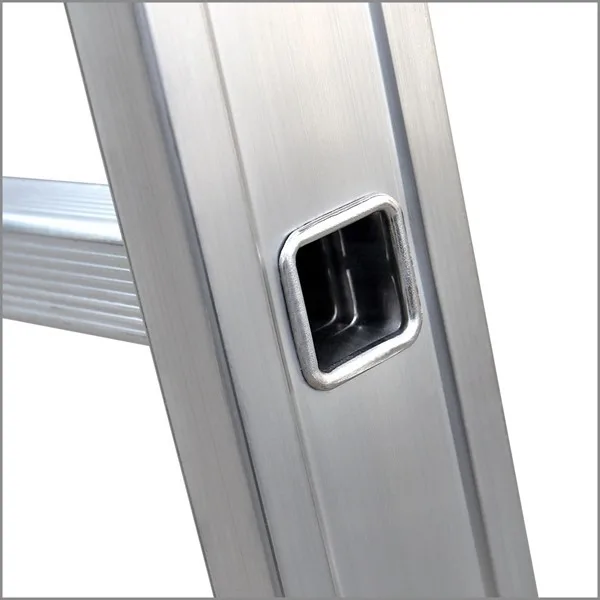

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - Multi-Point Swaged Rung-to-Stile Joint
Multi-Point Swaged Rung-to-Stile Joint

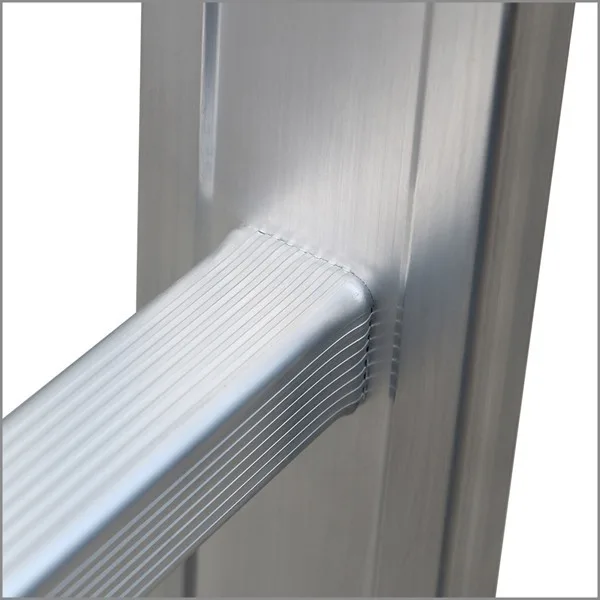

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - Multi-Point Swaged Rung-to-Stile Joint
Multi-Point Swaged Rung-to-Stile Joint

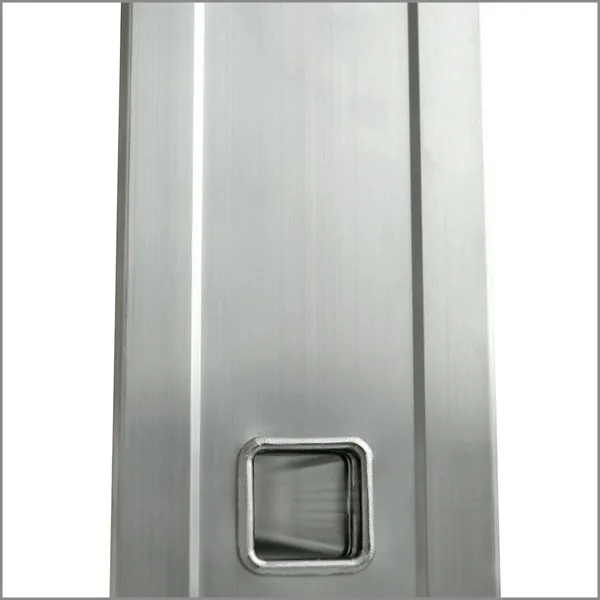

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - High-Tensile Extruded Box-Section Stile
High-Tensile Extruded Box-Section Stile

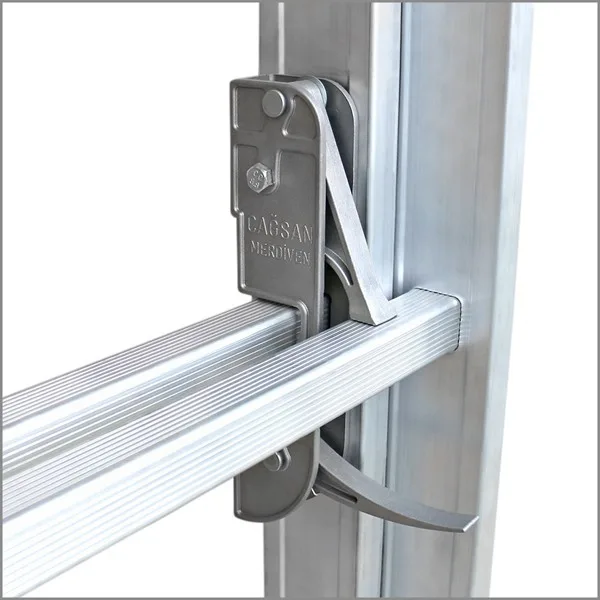

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - Positive Safety Locking Mechanism
Positive Safety Locking Mechanism

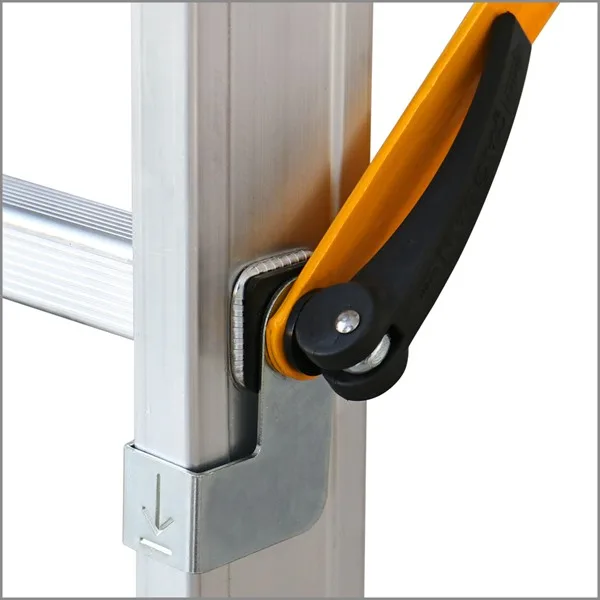

SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold - Positive Safety Locking Mechanism
Positive Safety Locking Mechanism

Target Industrial Applications

Facade Cladding & Glazing Factory High-Bay & HVAC Maintenance Airports, Hangars & Sports Arenas Drywall, Painting & Fire Sprinklers Construction Equipment Rental Fleets

Optimised net weight range (81.4 kg – 140 kg) enables fast, low-fatigue handling on industrial jobsites.

HSE Setup & Safe Operation Protocol

Before climbing, verify base spirit-level plumbness, engage all four castor brake pedals, and install telescopic outriggers at the heights specified in the BOM manual. Never roll or reposition a mobile scaffold tower while personnel or loose tools are on the platform.

Read EN 1004-1 Compliance Guide →

Periodic Inspection, Spare Parts & Export Packing

Aluminium and GRP profiles require no paint or anti-rust coatings. Wipe off mortar, grease, or dust after site use, and inspect hinges, S-Lock mechanisms, pulleys, and castor spindles every 6 months. Worn feet or missing braces can be ordered individually by SPY code from our Spare Parts Hub.

View Compatible Spare Parts →

Request B2B Export / Wholesale Proforma for SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold

Complete the form below to transmit your RFQ list, destination country/port, and viewed product link directly to our export engineering desk via WhatsApp.

+90 (505) 507 04 18

Alternative & Complementary Series

Compare other certified series with similar working height and structural duty class.

All Mobile Aluminium Scaffold Tower Systems →

Frequently Asked Questions About SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold

Key engineering answers regarding EN 131 / EN 1004 certification, working height calculation, container loading, and B2B procurement.

How do I obtain a corporate or export quotation for SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold?
Our SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold range includes 5 configurations (SPS-004 etc.) supplied on a B2B wholesale and project basis. Select your target SKU and click "+ Add to RFQ" or WhatsApp to receive a same-day proforma offer.
What maximum working height can be reached with SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold?
Depending on the selected variant, SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold provides a safe working height from 4.55 m up to 7.85 m. Working height is calculated in accordance with EN 1004-1 by adding an ergonomic 2.0 m operator reach above the standing rung/platform.
Which European safety standard and load capacity apply to SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold?
SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold is manufactured in strict compliance with EN 1004-1 and rated for 200 kg/m² (Class 3 Platform Load). You can generate an official technical datasheet PDF anytime using the "Print Datasheet" button on this page.
Will the SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold frame rust in outdoor or humid environments?
No. The High-Tensile Aluminium Alloy structure is naturally immune to red rust and atmospheric corrosion, ensuring decades of maintenance-free service indoors and outdoors.
What are the export packaging and international shipping options for SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold?
We ship via European Mega-Truck (FCA / DAP), Euro-pallet groupage (LTL), and 20ft DC / 40ft HC sea containers (FOB Istanbul / CIF) complete with ATR, EUR.1, Certificate of Origin, and HS Code documentation.
Are replacement feet, castors, and braces available for SerSafe SPS — Standard Two-Stage Mobile Aluminium Scaffold long-term?
Yes. All anti-slip shoes, stabiliser bars, locking castors, S-Lock clips, and diagonal braces are stocked permanently in our Spare Parts Hub under individual SPY part codes.
